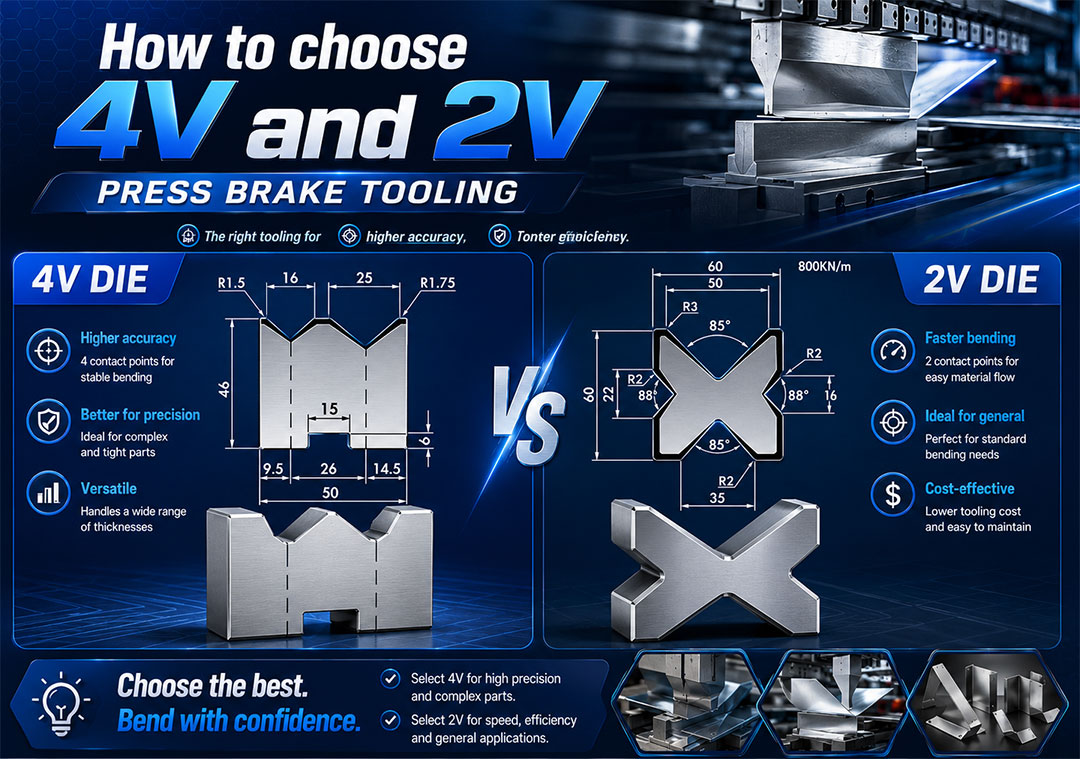

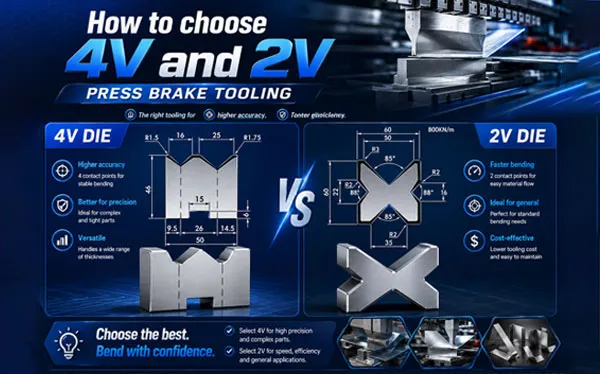

How to choose 4V and 2V press brake tooling?What are their specific advantages,and for which applications are they best suited?This choice is a critical factor in determining your operational efficiency.We hope the following article will assist you in selecting the die best suited to your needs,thereby enhancing your production efficiency.

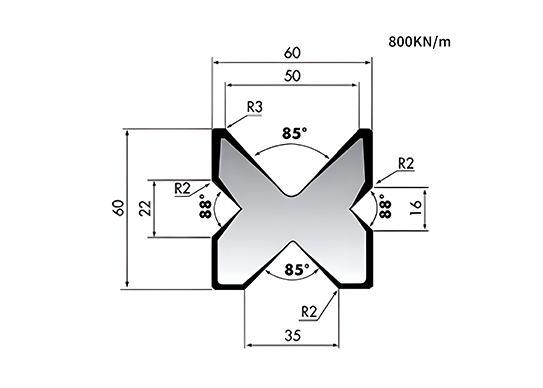

Four-way dies—also known as Multi-V dies—are specialized lower dies designed for press brakes.Each of their four faces features a V-groove of a different width;by simply rotating the die,the operator can switch between V-grooves,making them suitable for bending a wide variety of thick sheet metal materials.
● Versatile functionality:Enables a single machine to accommodate multiple sheet thicknesses.
● Rapid die changeover:Significantly boosts efficiency,as switching between V-grooves requires only a simple rotation.
● Reduced procurement costs:Minimizes expenses associated with purchasing and maintaining multiple sets of dies.
● Integrated design:Conserves valuable storage space within the workshop.
● Stable precision:Offers consistent accuracy,exceptional wear resistance,and long-term durability.

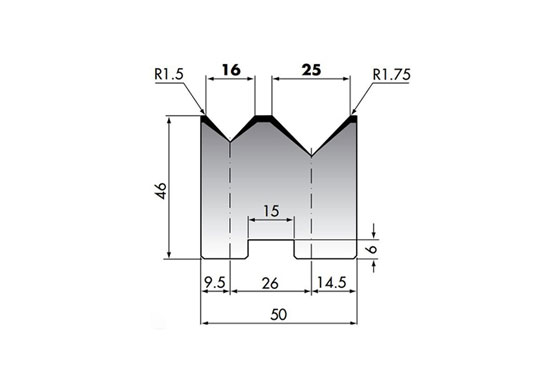

2V press brake dies—also known as"Double-V"dies—feature two V-grooves of different specifications cut along the exact same central axis.This design eliminates the need for re-centering at any stage of the operation.
● No need for centering;ensures high precision.
● Rapid die changeover;boosts operational efficiency.
● Narrow-profile design;offers superior adaptability.
● Exceptional material quality;ensures a long service life—lasting 30%longer than standard dies.
● Reduces costs and saves space by minimizing procurement and storage requirements.
| Feature | 4V Dies (Multi-V) | 2V Dies (Single-V) |
| Initial Cost | Lower (4 tools in 1) | Higher (Requires holders) |
| Precision | Standard | Ultra-High |
| Setup Time | Slower (Manual rotation) | Faster (Quick change) |
| Weight | Heavy/Bulky | Lightweight/Modular |
| Center Alignment | Varies by rotation | Always Fixed (Concentric) |
We understand that whether you choose the versatile Four-Way die or the high-precision Concentric system,material quality is non-negotiable.Our dies are:
● Material:Forged 42CrMo for maximum wear resistance.
● Processing:Full-length hardening(HRC 47+/-3)to ensure long-term accuracy.
● Finish:CNC precision ground for perfect parallelism.
We hope the article above proves helpful to you.If you are working with thick sheet metal or frequently encounter scenarios involving multiple specifications and frequent die changes,you can choose Multi-V Die for Press Brake.Conversely,if your focus is on high-precision bending—specifically involving high-precision workpieces,narrow flanges,and deep-box bending—or if you engage in high-mix,low-volume production,2V press dies would be the preferred choice.
