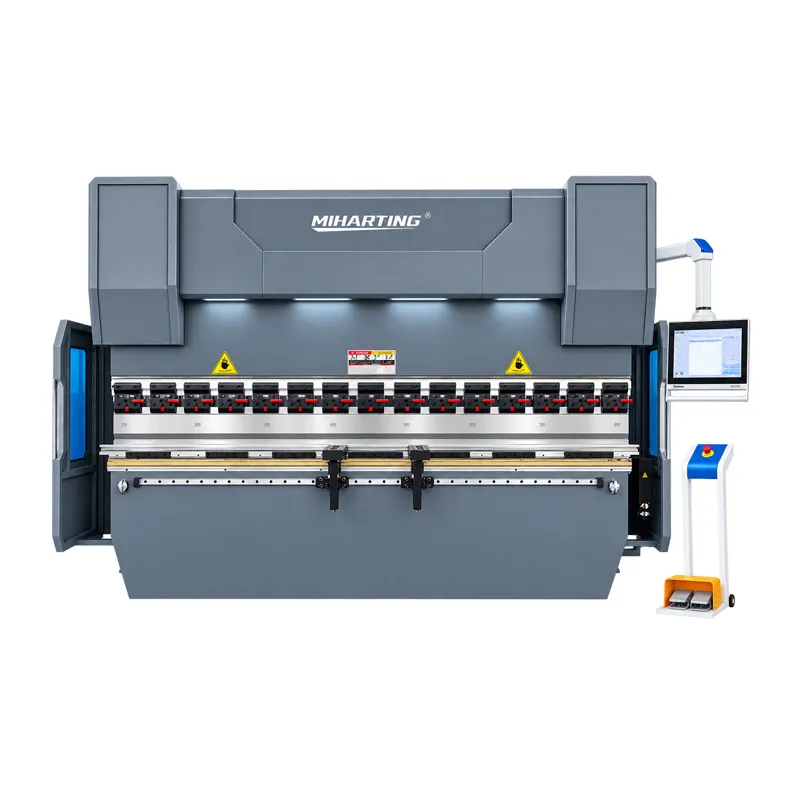

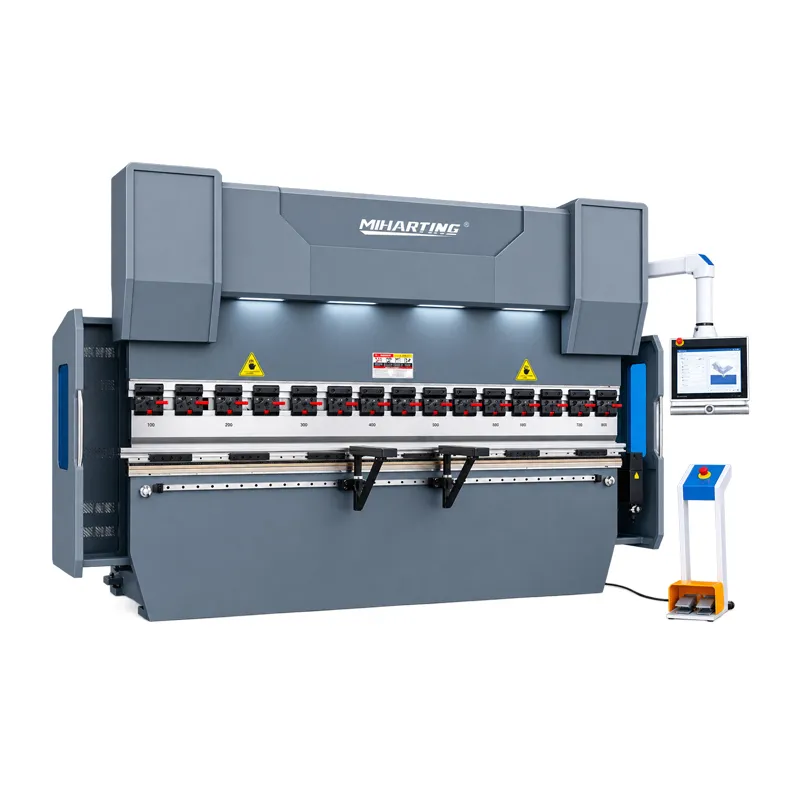

Name: DELEM DA53T 125Ton CNC Press Brake Machine
Brand: Anhui Harting Machinery Technology Co., LTD.

DELEM DA53T 125Ton CNC Press Brake Machine

Miharting offers a comprehensive range of bending machines—including CNC electro-hydraulic, all-electric, large-scale servo electro-hydraulic, and flexible bending centers—with full model availability and customization options.

• High performance and high precision

• Long service life

• Ample spare parts and timely delivery

• 24/7 technical support

Get a Free Quote

Hydraulic Press Brake Technical Specifications

NO.	Name		Unit	HTS-10032	HTS-13532	HTS-16032	HTS-20040	HTS-25040	HTS-30040	HTS-40040
1.	Nominal force		KN	1000	1350	1600	2000	2500	3000	4000
2.	Worktable length		mm	3200	3200	3200	4000	4000	4000	4000
3.	Between Columns		mm	2600	2600	2600	3100	3100	3100	3100
4.	Equipping die height		mm	480	480	480	480	530	530	580
5.	Slider Travel		mm	200	200	200	200	250	250	320
6.	Throat depth		mm	400	400	400	400	400	400	400
7.	Down Speed		mm/min	160	160	130	130	120	120	10
8.	Pressing Speed		mm/min	10	10	10	10	10	10	9
9.	Return Speed		mm/min	130	130	120	120	110	100	100
10.	Main power		KW	7.5	11	11	15	18.5	22	30
11.	X axis stroke		mm	500	500	500	500	500	500	600
12.	X axis speed		mm/s	300	300	300	250	250	250	250
13.	R axis stroke		mm	200	200	200	200	200	200	200
14.	R axis speed		mm/s	60	60	60	60	60	60	60
15.	Control axes 4+1 Axis			(X,Y1,Y2,R+V)	(X,Y1,Y2,R+V)	(X,Y1,Y2,R+V)	(X,Y1,Y2,R+V)	(X,Y1,Y2,R+V)	(X,Y1,Y2,R+V)	(X,Y1,Y2,R+V)
16.	Size	L	mm	3700	3700	3700	4500	4500	4500	4500
		W	mm	1750	1800	1870	1950	2150	2250	2400
		H	mm	2450	2450	2700	2700	3200	3300	4000
