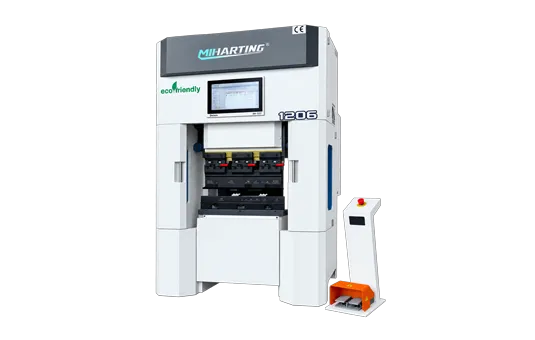

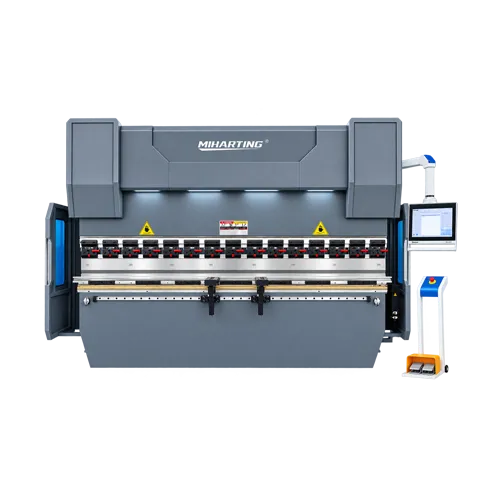

Miharting offers a comprehensive range of bending machines—including CNC electro-hydraulic, all-electric, large-scale servo electro-hydraulic, and flexible bending centers—with full model availability and customization options.
• High performance and high precision
• Long service life
• Ample spare parts and timely delivery
• 24/7 technical support
NO. | Name | Unit | HTS-10032 | HTS-13532 | HTS-16032 | HTS-20040 | HTS-25040 | HTS-30040 | HTS-40040 | |
1. | Nominal force | KN | 1000 | 1350 | 1600 | 2000 | 2500 | 3000 | 4000 | |
2. | Worktable length | mm | 3200 | 3200 | 3200 | 4000 | 4000 | 4000 | 4000 | |
3. | Between Columns | mm | 2600 | 2600 | 2600 | 3100 | 3100 | 3100 | 3100 | |
4. | Equipping die height | mm | 480 | 480 | 480 | 480 | 530 | 530 | 580 | |
5. | Slider Travel | mm | 200 | 200 | 200 | 200 | 250 | 250 | 320 | |
6. | Throat depth | mm | 400 | 400 | 400 | 400 | 400 | 400 | 400 | |
7. | Down Speed | mm/min | 160 | 160 | 130 | 130 | 120 | 120 | 10 | |
8. | Pressing Speed | mm/min | 10 | 10 | 10 | 10 | 10 | 10 | 9 | |
9. | Return Speed | mm/min | 130 | 130 | 120 | 120 | 110 | 100 | 100 | |
10. | Main power | KW | 7.5 | 11 | 11 | 15 | 18.5 | 22 | 30 | |
11. | X axis stroke | mm | 500 | 500 | 500 | 500 | 500 | 500 | 600 | |
12. | X axis speed | mm/s | 300 | 300 | 300 | 250 | 250 | 250 | 250 | |
13. | R axis stroke | mm | 200 | 200 | 200 | 200 | 200 | 200 | 200 | |
14. | R axis speed | mm/s | 60 | 60 | 60 | 60 | 60 | 60 | 60 | |
15. | Control axes 4+1 Axis | (X,Y1,Y2,R+V) | (X,Y1,Y2,R+V) | (X,Y1,Y2,R+V) | (X,Y1,Y2,R+V) | (X,Y1,Y2,R+V) | (X,Y1,Y2,R+V) | (X,Y1,Y2,R+V) | ||
16. | Size | L | mm | 3700 | 3700 | 3700 | 4500 | 4500 | 4500 | 4500 |
W | mm | 1750 | 1800 | 1870 | 1950 | 2150 | 2250 | 2400 | ||
H | mm | 2450 | 2450 | 2700 | 2700 | 3200 | 3300 | 4000 | ||
