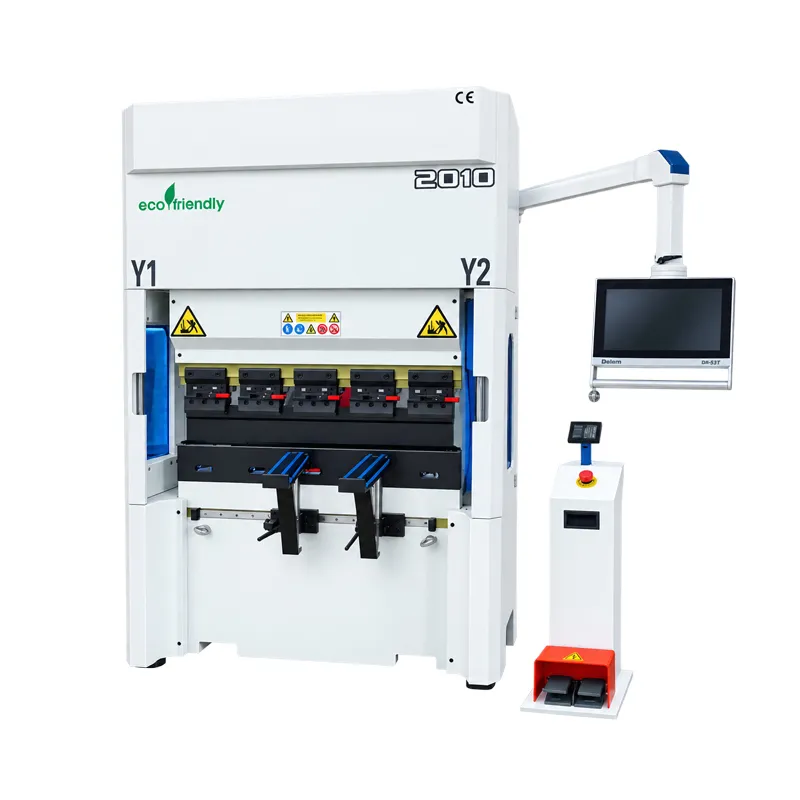

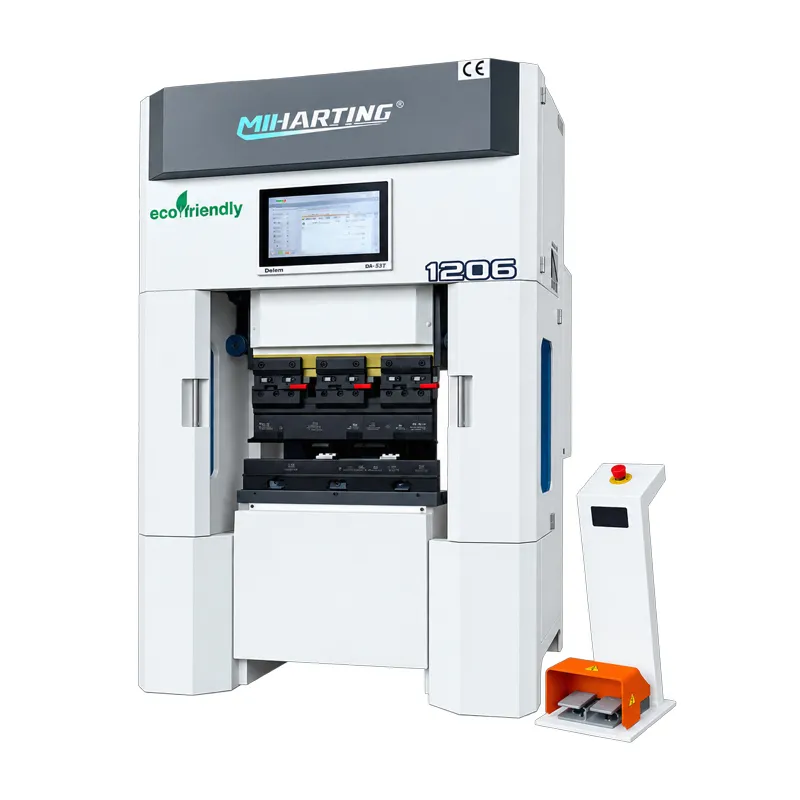

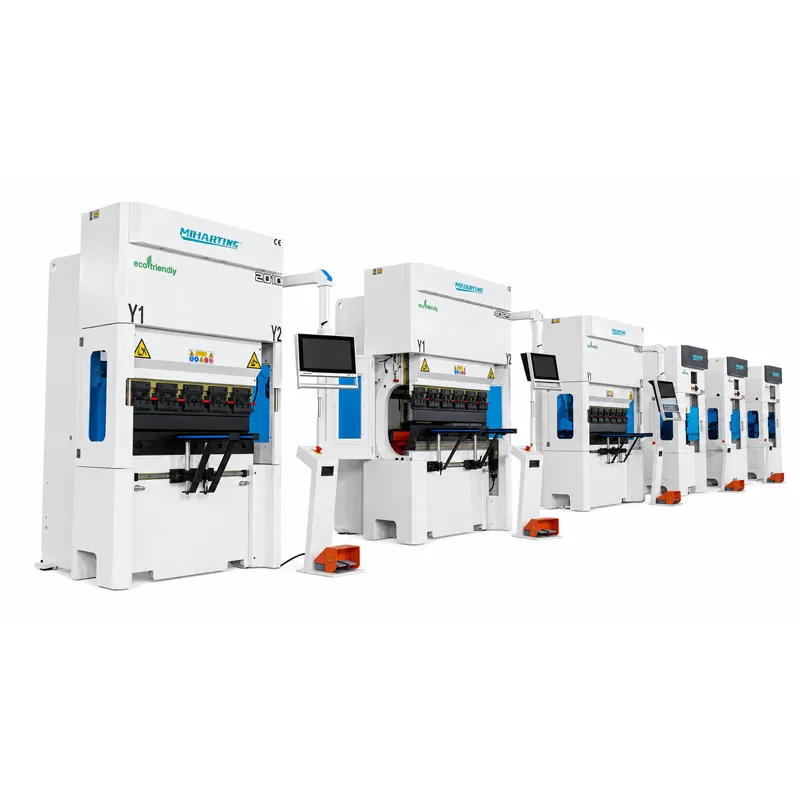

Miharting offers a comprehensive range of bending machines—including CNC electro-hydraulic, all-electric, large-scale servo electro-hydraulic, and flexible bending centers—with full model availability and customization options.
• High performance and high precision
• Long service life
• Ample spare parts and timely delivery
• 24/7 technical support
NO. | Name | Unit | HTE3/200 | HTE6/400 | HTE12/600 | HTE18/800 |
1 | Nominal Machine Pressure | T | 3 | 6 | 12 | 18 |
2 | Worktable | mm | 200 | 400 | 600 | 800 |
3 | Column Spacing | mm | 296 | 370 | 520 | 720 |
4 | Throat Depth | mm | 150 | 180 | 200 | 250 |
5 | Slide Stroke | mm | 120 | 120 | 120 | 120 |
6 | Maximum Opening Height | mm | 420 | 420 | 420 | 420 |
7 | Backgauge Stroke | mm | 150 | 180 | 200 | 350 |
8 | Maximum Slide Running Speed | mm/s | 200 | 200 | 200 | 200 |
9 | Main Motor Power | KW | 2*1 | 3*1 | 5.5*1 | 7.5*1 |
10 | Number of Axes | Axes | 3（Y,X,R） | 2（Y,X,R） | 3（Y,X,R） | 3（Y,X,R） |
11 | Machine Dimensions (L*W*H) | mm | 600*670*1750 | 750*800*2050 | 1000*970*2100 | 1000*970*2100 |
12 | Machine Weight | kg | 550 | 750 | 1150 | 1800 |

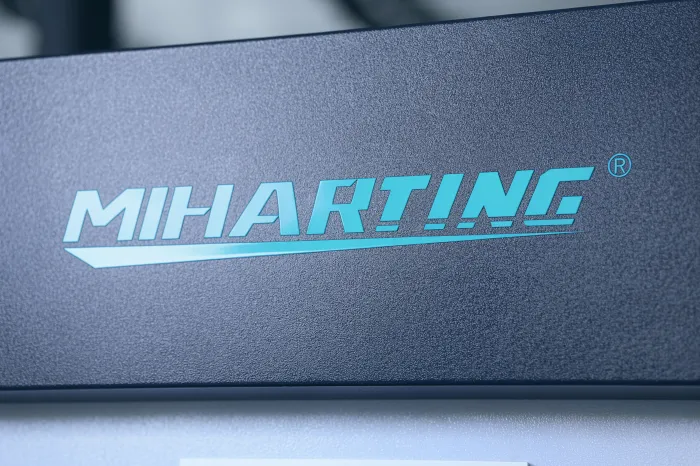

Miharting utilizes a welded structure made of high-quality steel plate, with stress-relief tempering. The frame is robust, offering high rigidity and excellent vibration damping, thereby ensuring machining precision.
Miharging press brake tooling is precision-engineered for seamless compatibility with all-electric systems. It offers high durability, boosts production efficiency, ensures strong process compatibility, and delivers excellent cost-performance value.

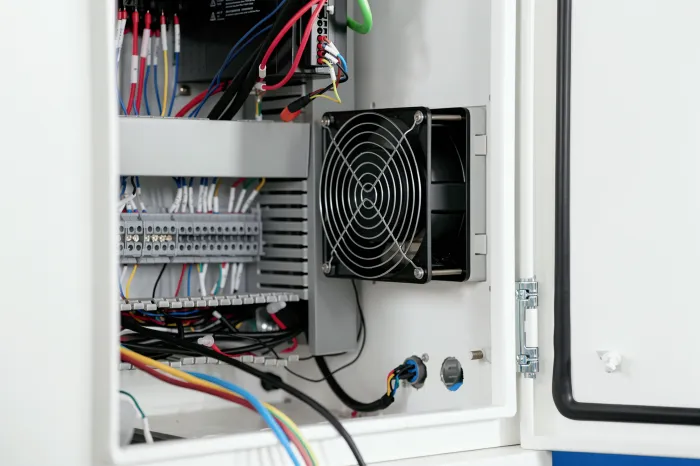

Utilizes Schneider Electric components from France, featuring a complete suite of low-voltage devices such as circuit breakers, AC contactors, and safety relays.
Key features include industrial-grade interference resistance suitable for the harsh environments of sheet metal workshops; multiple protection mechanisms ensuring the safety of both equipment and personnel; long contact lifespan ideal for high-frequency switching; power ratings matched to the all-electric bending machine; and clear fault diagnostics for convenient maintenance and repair.

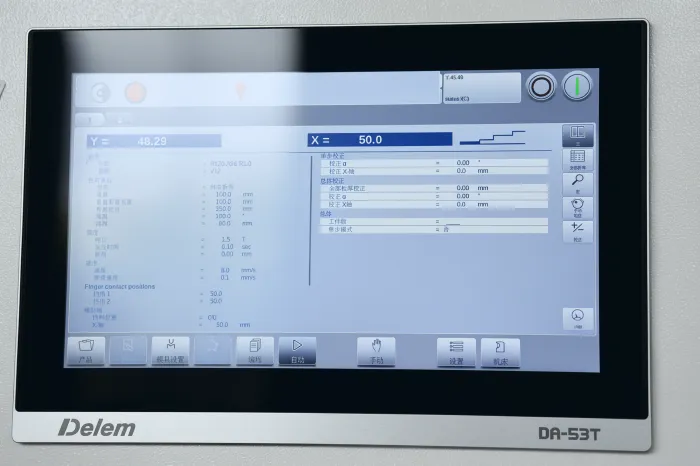

Options include Taiwan Qiaohong or Delem systems.
Features a 10-inch industrial capacitive touchscreen and comes standard with 6+1 axes.
Supports multiple languages for use across different regions; enables automated storage of bending programs; ensures high bending precision and labor savings; offers stable performance, energy efficiency, and low operating costs.

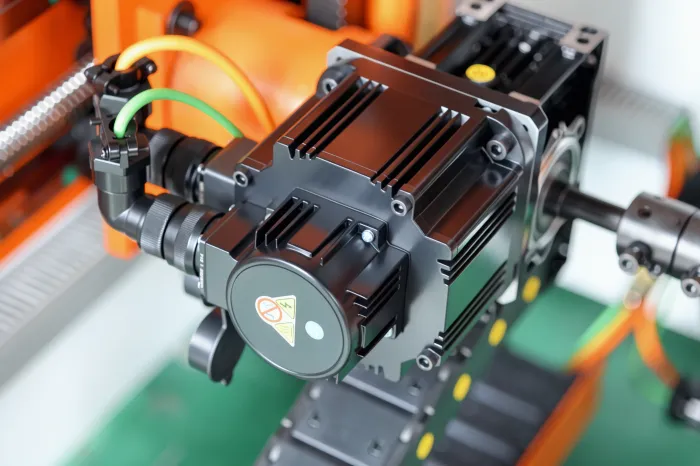

Miharting servo motors feature high-precision positioning, faster response speeds, stable repeatability, and smoother motion.
.webp "5Backgauge Servo Motor(Delta).png")

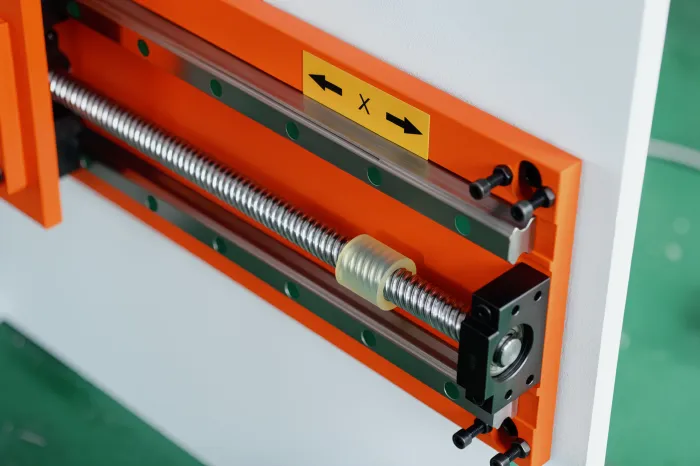

Equipped with Hiwin (Taiwan) ball screws and linear guides, the system offers high transmission accuracy and a punch response time of 2.1 seconds. Key features include wear resistance, smooth operation, low noise, high load-bearing capacity, excellent compatibility, and ease of installation.
The linear guides ensure stable precision and are manufactured using high-quality materials, precision machining, and advanced inspection equipment, delivering superior performance and excellent cost-effectiveness.
